Rear Combination Light Assembly: Removal

  1. Disconnect the ground cable from battery. Refer to NOTE>NOTE>BATTERY .
    NOTE: For model with battery sensor, disconnect the ground terminal from battery sensor.
  2. Remove the trunk room trim. Refer to EXTERIOR/INTERIOR TRIM>TRUNK ROOM TRIM>REMOVAL .
  3. Remove the light assembly - rear combination.
    CAUTION: Be careful not to damage the clips.
    1. Remove the harness clip and connector.
    2. Release the nuts and clips, then remove the light assembly - rear combination.

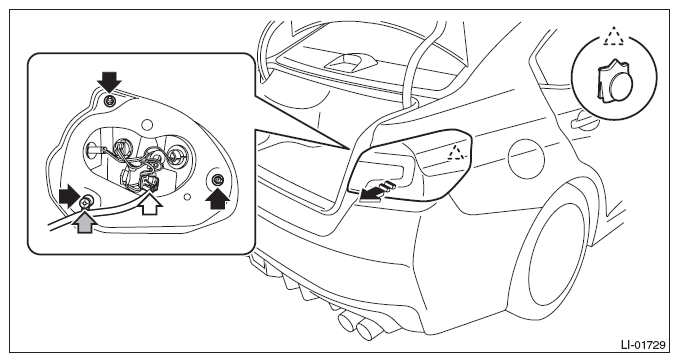

      G10270715Courtesy of SUBARU OF AMERICA, INC.
