Washer Tank

Models without EyeSight

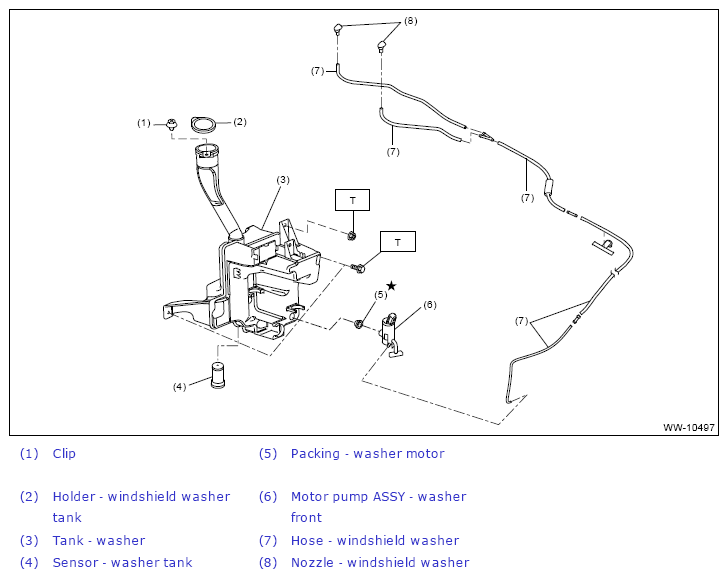

Fig 1: Washer Tank Components (With Torque Specification) (Models Without Eyesight)
Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T: 6 (0.6, 4.4)
Models with EyeSight

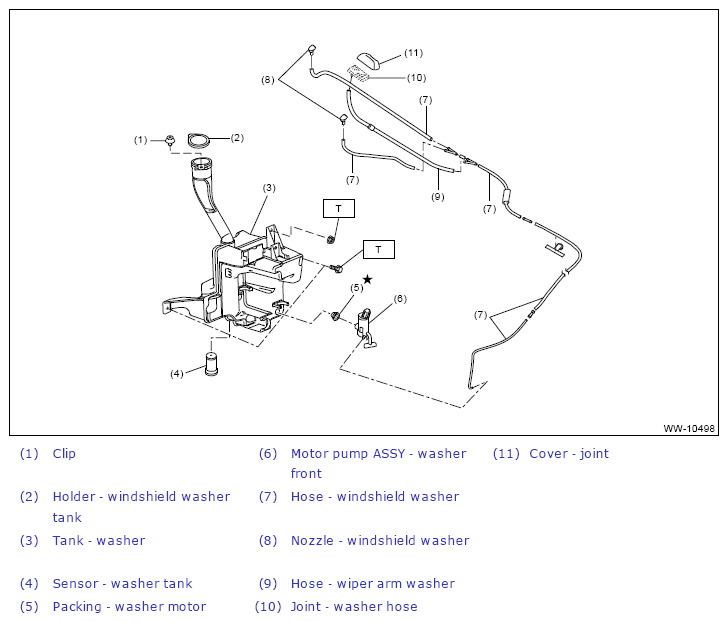

Fig 2: Washer Tank Components (With Torque Specification) (Models With Eyesight)
Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T: 6 (0.6, 4.4)
