Front Regulator and Motor Assembly: Removal

  1. Disconnect the ground cable from battery and wait for at least 60 seconds before starting work. Refer to NOTE>NOTE>BATTERY .
    NOTE: For model with battery sensor, disconnect the ground terminal from battery sensor.
  2. Remove the trim panel - front door. Refer to EXTERIOR/INTERIOR TRIM>DOOR TRIM>REMOVAL>FRONT DOOR .
  3. Remove the sealing cover - front door. Refer to EXTERIOR BODY PANELS>FRONT SEALING COVER>REMOVAL .
  4. Remove the glass assembly - front door. Refer to GLASS/WINDOW/MIRRORS>FRONT DOOR GLASS>REMOVAL .
  5. Remove the regulator and motor assembly - front.
    1. Disconnect the motor - front connector.
    2. Remove the bolts, and then remove the regulator and motor assembly - front.

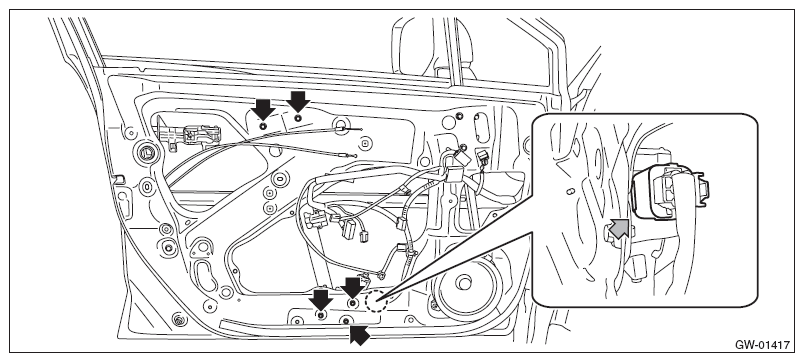

      G10270853Courtesy of SUBARU OF AMERICA, INC.
