Rear Door Glass

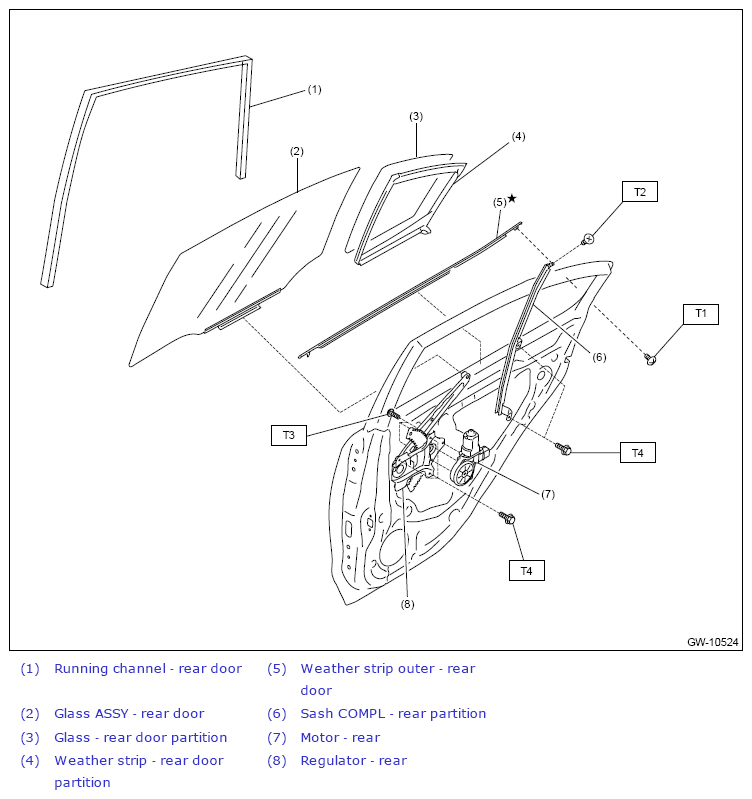

Fig 1: Rear Door Glass Components (With Torque Specification)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 2 (0.2, 1.5)

T2: 2.2 (0.2, 1.6)

T3: 5.9 (0.6, 4.4)

T4: 7.5 (0.8, 5.5)
