Rear Regulator and Motor Assembly: Removal

  1. Disconnect the ground cable from battery. Refer to NOTE>NOTE>BATTERY .
    NOTE: For model with battery sensor, disconnect the ground terminal from battery sensor.
  2. Remove the trim panel - rear door. Refer to EXTERIOR/INTERIOR TRIM>DOOR TRIM>REMOVAL>REAR DOOR .
  3. Remove the sealing cover - rear door.
  4. Remove the glass assembly - rear door. Refer to GLASS/WINDOW/MIRRORS>REAR DOOR GLASS>REMOVAL .
  5. Remove the rear regulator and motor assembly.

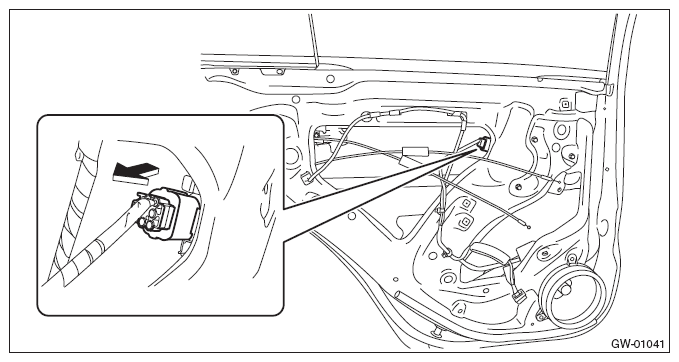

    1. Disconnect the connector of the motor - rear.
      G08315168Courtesy of SUBARU OF AMERICA, INC.

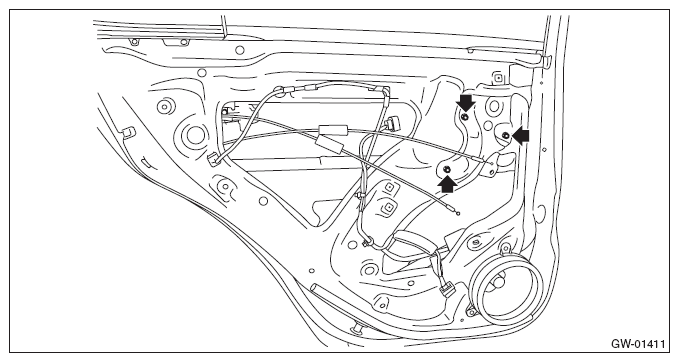

    2. Remove the bolts, and then remove the regulator and motor assembly - rear.
      G10270870Courtesy of SUBARU OF AMERICA, INC.
