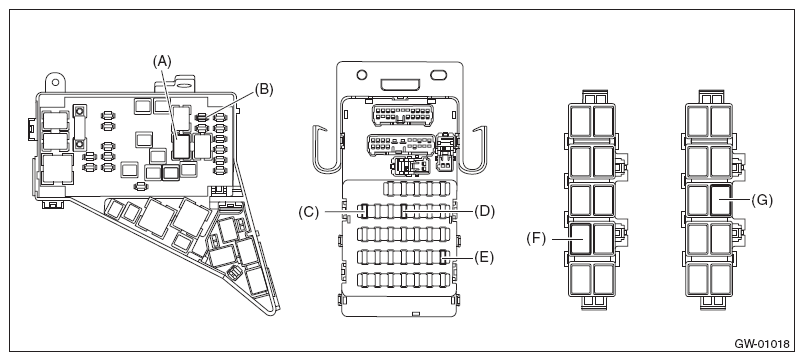

Relay and Fuse: Location
| Main fuse box | Rear defogger relay | (A) |
| Fuse 25 A (rear defogger) | (B) | |
| Relay & fuse box | Fuse 7.5 A (remote control mirror) | (C) |
| Fuse 7.5 A (wiper deicer) | (D) | |
| Fuse 7.5 A (power window) | (E) | |
| Relay holder | Power window relay | (F) |
| Wiper deicer relay | (G) |
NOTE:
For other related fuses, refer to the wiring diagram. Refer to WIRING SYSTEM>POWER SUPPLY CIRCUIT
.
