Oil Pipe Assembly

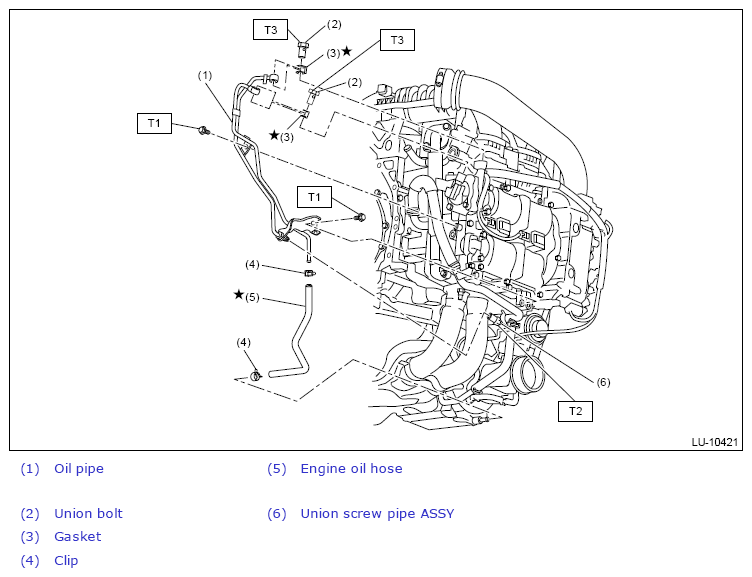

Fig 1: Oil Pipe Assembly Components (With Torque Specification)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 6.8 (0.7, 5.0)

T2: 20 (2.0, 14.8)

T3: 31.5 (3.2, 23.2)
