Exhaust System (2.0L): Muffler: Installation
Install in the reverse order of removal.
NOTE:
- Use a new gasket and self-locking nut.
- After assembling, degrease the lubricant which was applied to the cushion rubber while removing/installing.

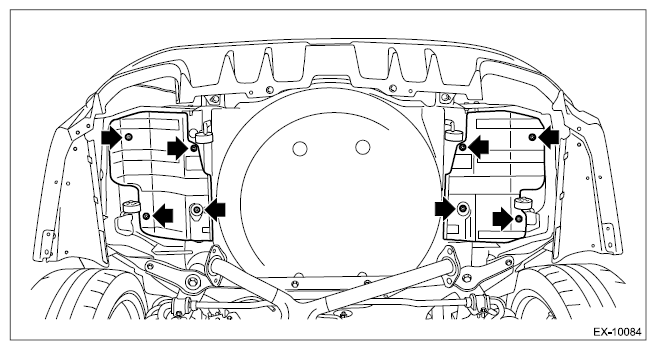

Tightening torque:
10 N.m (1.0 kgf-m, 7.4 ft-lb)
 Courtesy of SUBARU OF AMERICA, INC.
|

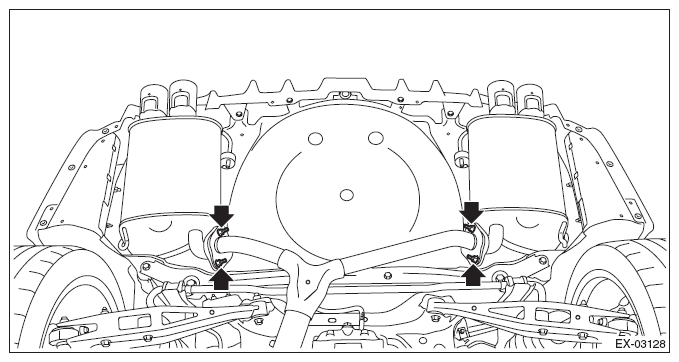

Tightening torque:
48 N.m (4.9 kgf-m, 35.4 ft-lb)
 Courtesy of SUBARU OF AMERICA, INC.
|
