Chain Cover: Assembly
- Install the camshaft position sensor. Refer to FUEL INJECTION (FUEL SYSTEMS) (W/O STI)>CAMSHAFT POSITION SENSOR>INSTALLATION .
- Install the oil control solenoid. Refer to FUEL INJECTION (FUEL SYSTEMS) (W/O STI)>OIL CONTROL SOLENOID>INSTALLATION .
- Install the engine oil temperature sensor. Refer to FUEL INJECTION (FUEL SYSTEMS) (W/O STI)>ENGINE OIL TEMPERATURE SENSOR>INSTALLATION .
- Install the oil pressure switch. Refer to LUBRICATION(W/O STI)>OIL PRESSURE SWITCH>INSTALLATION .
- Install the PCV hose assembly No. 1. Refer to EMISSION CONTROL (AUX. EMISSION CONTROL DEVICES) (W/O STI)>PCV HOSE ASSEMBLY>REPLACEMENT>PCV HOSE ASSY NO. 1 .

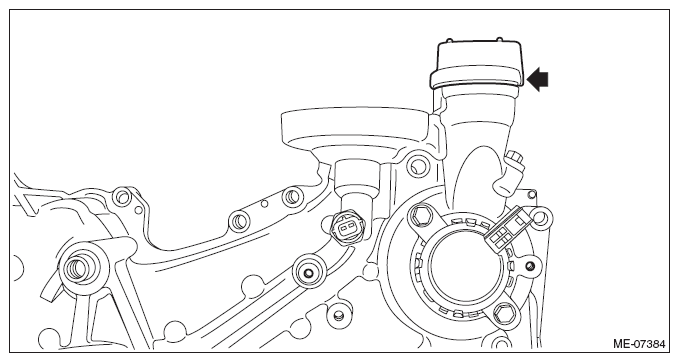

- Install the oil filler cap.
