Fuel Pressure: Inspection

  1. Remove the collector cover. Refer to INTAKE (INDUCTION) (W/O STI)>COLLECTOR COVER>REMOVAL .
  2. Release the fuel pressure. Refer to FUEL INJECTION (FUEL SYSTEMS) (W/O STI)>FUEL>PROCEDURE>RELEASING OF FUEL PRESSURE .
  3. Open the fuel filler lid and remove the fuel filler cap.
    NOTE: This operation is required to release the inner pressure of the fuel tank.
  4. Disconnect the fuel delivery tube from the fuel delivery pipe, and connect the fuel pressure gauge.
    CAUTION:
    • Be careful not to spill fuel.
    • Catch the fuel from the tubes using a container or cloth.

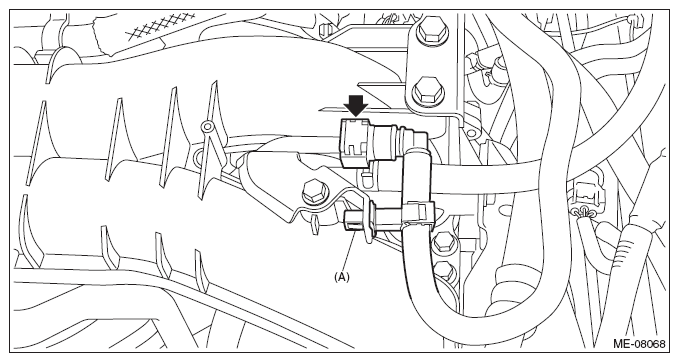

    1. Disconnect the quick connector on the fuel delivery tube from the fuel pipe assembly, and remove the clip (A) securing the fuel delivery tube to the fuel pipe assembly.
      NOTE: Disconnect the quick connector as shown in the figure.
      G13641627Courtesy of SUBARU OF AMERICA, INC.
      G10266646Courtesy of SUBARU OF AMERICA, INC.

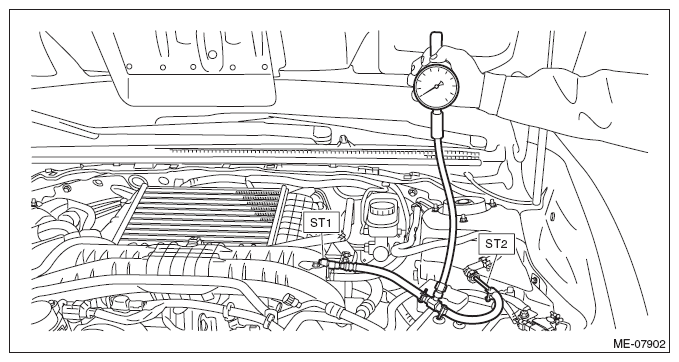

    2. Connect the fuel pressure gauge with ST1 and ST2.
    CAUTION:
    • Check that there is no damage or dust on the quick connector. If necessary, clean the seal surface of the pipe.
    • When connecting the quick connector with slider, make sure to insert it all the way in before locking the slider.
    • When it is difficult to lock the slider, check that the connector is fully inserted.
    • After locking the slider, pull the quick connector itself to the disconnecting direction, and then push to the connecting direction in order to confirm secure connection. Make sure to end this check with a pushing step.
    NOTE:
    • ST1 is a SUBARU genuine part.
    • When connecting the ST2 to the quick connector on the fuel delivery tube, connect as shown in the figure.
    G13641629Courtesy of SUBARU OF AMERICA, INC.
    ST1  42075AG690  FUEL HOSE
    ST2  18471AA000  FUEL PIPE ADAPTER
    G10266648Courtesy of SUBARU OF AMERICA, INC.
  5. Start the engine.
  6. Check the fuel pressure after warming up the engine.
    NOTE:
    • The fuel pressure gauge registers 10 to 20 kPa (0.1 to 0.2 kg/cm2 , 1 to 3 psi) higher than standard values during high-altitude operations.
    • Check or replace the fuel pump and fuel delivery line if the fuel pressure is out of the standard.

    Fuel pressure:

    Standard

    340 - 400 kPa (3.5 - 4.1 kg/cm2 , 49 - 58 psi)

  7. After inspection, install the related parts in the reverse order of removal.
CAUTION:
  • Before removing the fuel pressure gauge, release the fuel pressure.
  • Be careful not to spill fuel.
  • Catch the fuel from hoses and tubes using a container or cloth.
  • Check that there is no damage or dust on the quick connector. If necessary, clean the seal surface of the pipe.
  • When connecting the quick connector with slider, make sure to insert it all the way in before locking the slider.
  • When it is difficult to lock the slider, check that the connector is fully inserted.
  • After locking the slider, pull the quick connector itself to the disconnecting direction, and then push to the connecting direction in order to confirm secure connection. Make sure to end this check with a pushing step.
NOTE:

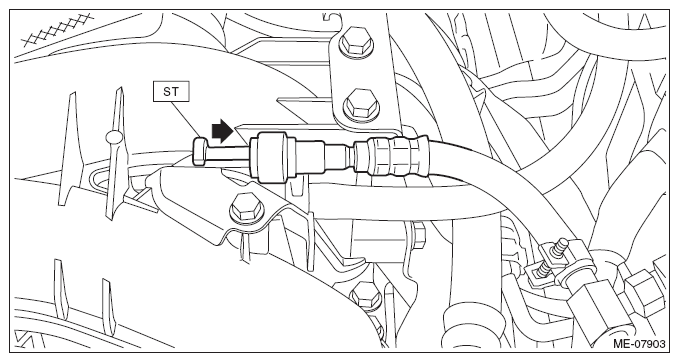

  • When disconnecting the ST1, install the ST2 to the fuel pipe assembly, and press the ST2 in the direction of arrow to disconnect the quick connector on the ST1.
    ST1  42075AG690  FUEL HOSE
    ST2  42099AE000  QUICK CONNECTOR RELEASE
    G10266649Courtesy of SUBARU OF AMERICA, INC.
  • Disconnect the quick connector on the fuel delivery tube as shown in the figure.
    G13641632Courtesy of SUBARU OF AMERICA, INC.
  • Connect the quick connector on the fuel delivery tube as shown in the figure.
G13641633Courtesy of SUBARU OF AMERICA, INC.
