Rocker Cover

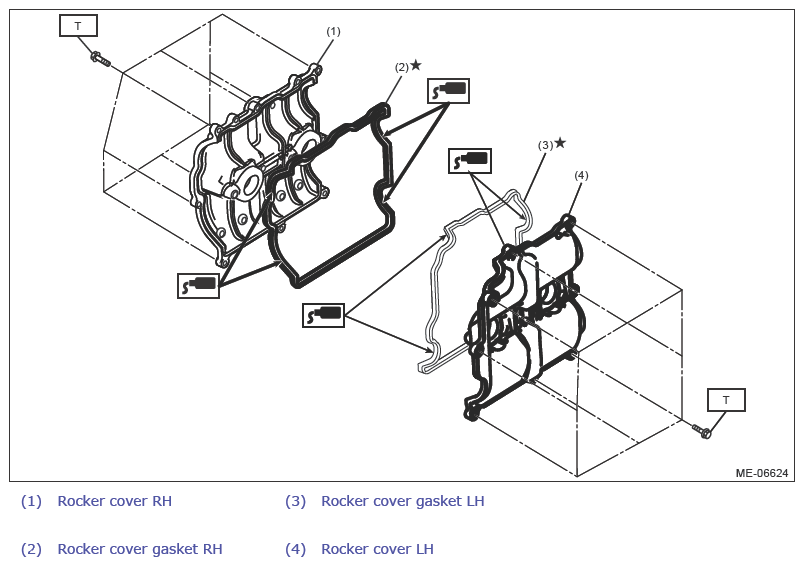

Fig 1: Rocker Cover Components (With Torque Specification)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T:  Refer to MECHANICAL(W/O STI)>ROCKER COVER>INSTALLATION .
