Fuel Pump Relay: Removal

  1. Disconnect the ground terminal from battery sensor. Refer to NOTE>NOTE>BATTERY .
  2. Remove the glove box. Refer to EXTERIOR/INTERIOR TRIM>GLOVE BOX>REMOVAL .
  3. Remove the fuel pump relay.

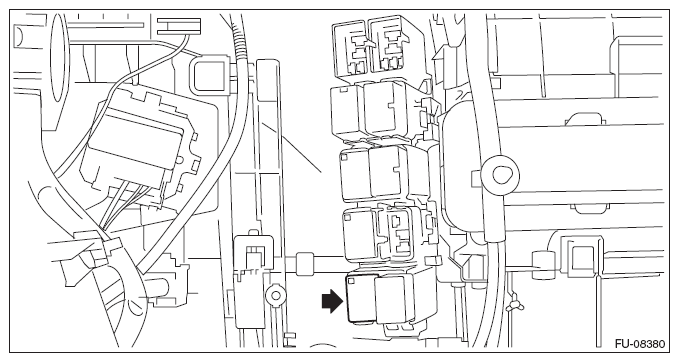

    G10266269Courtesy of SUBARU OF AMERICA, INC.
