High-Pressure Fuel Pump Case

  1. Remove the high-pressure fuel pump. Refer to FUEL INJECTION (FUEL SYSTEMS) (W/O STI)>HIGH PRESSURE FUEL PUMP>REMOVAL>HIGH-PRESSURE FUEL PUMP .

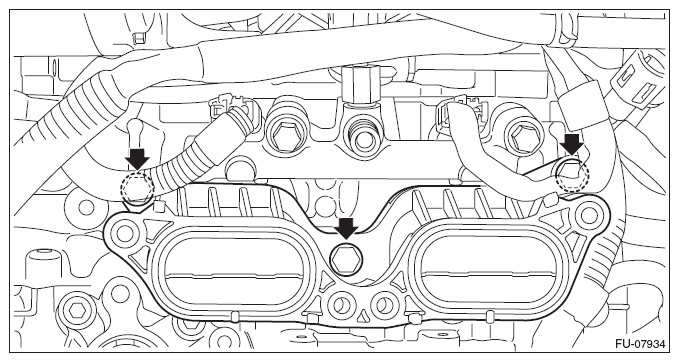

  2. Remove the air intake adapter LH from the cylinder head.
    G09479702Courtesy of SUBARU OF AMERICA, INC.

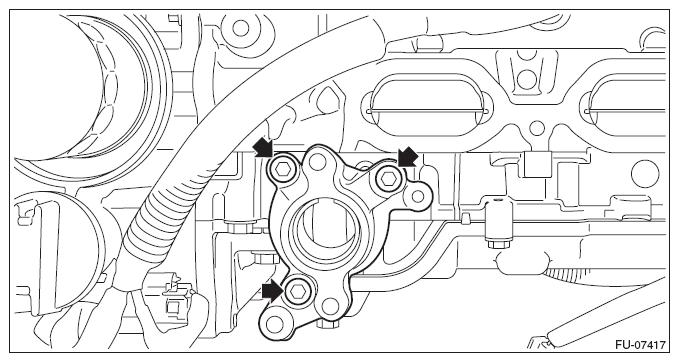

  3. Remove the high-pressure fuel pump case from the cam carrier assembly LH.
    G09479703Courtesy of SUBARU OF AMERICA, INC.
