Front Speaker: Removal: Door

WARNING: This page is about a different car, the 2022 Subaru WRX. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

Before handling the airbag system components, refer to "CAUTION" of "General Description" in "AIRBAG SYSTEM". Ref. to AIRBAG SYSTEM>GENERAL DESCRIPTION>CAUTION

Disconnect the ground terminal from the battery sensor, and wait for at least 60 seconds before starting work. Ref. to REPAIR CONTENTS>NOTE>BATTERY
Remove the trim panel front door. Ref. to EXTERIOR/INTERIOR TRIM>DOOR TRIM>REMOVAL>FRONT DOOR

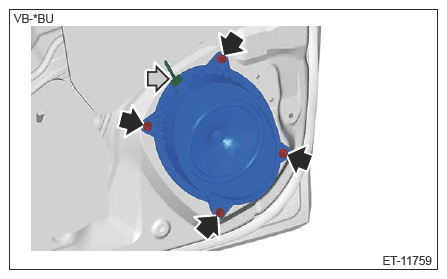

Remove the speaker assembly front.

CAUTION:

Do not touch the cone.

Disconnect the connector.

Remove the screws and remove the speaker assembly front.

Courtesy of SUBARU OF AMERICA, INC.
