Front Speaker: Removal: Tweeter

WARNING: This page is about a different car, the 2022 Subaru WRX. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY

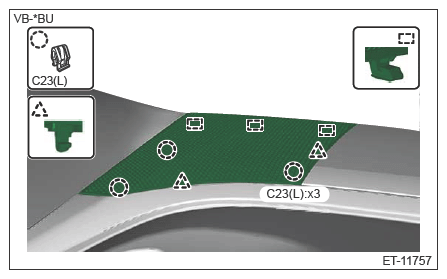

Release the clips and claws, then detach the grille speaker side.

Courtesy of SUBARU OF AMERICA, INC.

Remove the speaker assembly tweeter.

CAUTION:

Do not touch the cone.

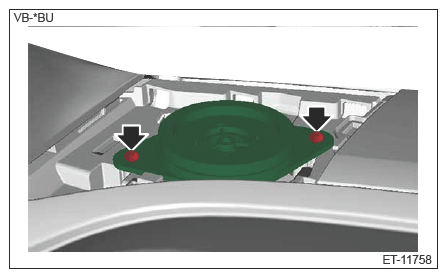

Remove the screws.

Courtesy of SUBARU OF AMERICA, INC.

Disconnect the connector and remove the speaker assembly tweeter.
