Telematics Button

WARNING: This page is about a different car, the 2022 Subaru WRX. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY
Remove the light assembly map. Ref. to LIGHTING SYSTEM>SPOT MAP LIGHT>REMOVAL

Remove the telematics button.

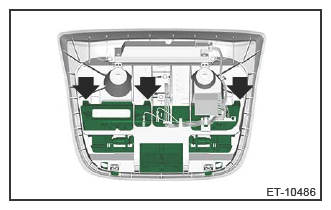

Release the claws and remove the front side of the frame.

CAUTION:

Be careful not to pull the harness.

Courtesy of SUBARU OF AMERICA, INC.

NOTE:

The frame cannot be removed.

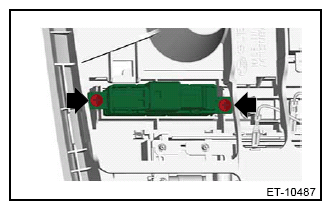

Remove the screws from the frame clearance, and remove the telematics button.

Courtesy of SUBARU OF AMERICA, INC.
