Sunroof Switch: Removal

WARNING: This page is about a different car, the 2022 Subaru WRX. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY
Remove the light assembly map. Ref. to LIGHTING SYSTEM>SPOT MAP LIGHT>REMOVAL

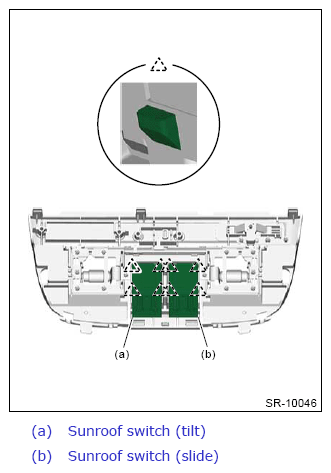

Remove the sunroof switch.

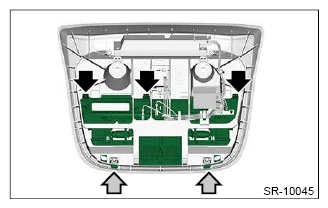

Release the claws and guides, and remove the frame.

CAUTION:

Be careful not to pull the harness.

Courtesy of SUBARU OF AMERICA, INC.

NOTE:

The frame cannot be removed.

Release the claws, and then remove the sunroof switch.

Courtesy of SUBARU OF AMERICA, INC.
