Front Brake Hose
WARNING: This page is about a different car, the 2022 Subaru WRX. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the front wheels. Ref. to WHEEL AND TIRE SYSTEM>TIRE AND WHEEL>REMOVAL .

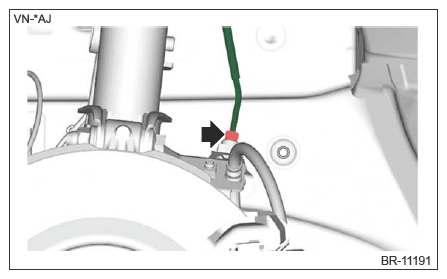

- Separate pipe assembly front ABS using a flare nut wrench.

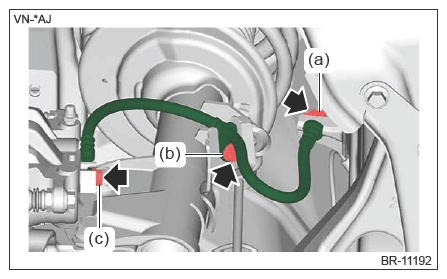

- Remove the clamp brake hose (a), brake hose bracket bolt (b) and union bolt (c), and remove brake hose front.
