Disc Rotor Thickness Check

WARNING: This page is about a different car, the 2022 Subaru WRX. However, it is still accessible from the selected car via links, so may be relevant.

Remove the caliper body. Ref. to BRAKE>FRONT DISC BRAKE ASSEMBLY>REMOVAL .

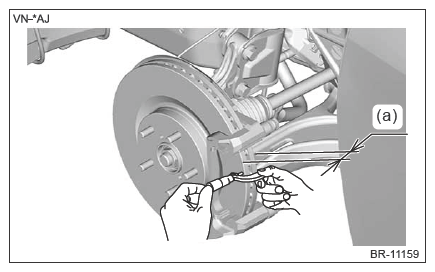

Set a micrometer 10 mm (0.39 in) inward from the brake disc front outer perimeter, and then measure the disc rotor thickness (a).

Courtesy of SUBARU OF AMERICA, INC.

	Value in a brand-new state	Wear limit
Disc rotor thickness	28 mm (1.1 in)	26 mm (1.02 in)

If the wear limit is exceeded in the inspection, replace the brake disc front.
