Electric Brake Booster Model

WARNING: This page is about a different car, the 2022 Subaru WRX. However, it is still accessible from the selected car via links, so may be relevant.

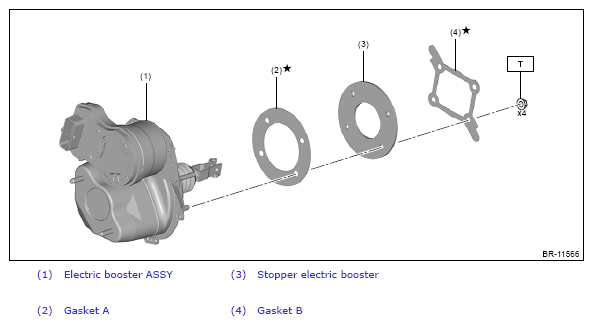

Fig 1: Brake Booster Components With Torque Specifications (Electric Brake Booster Model)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T: 18 (1.8, 13.3)
