Except For The Electronic Parking Brake Model

WARNING: This page is about a different car, the 2022 Subaru WRX. However, it is still accessible from the selected car via links, so may be relevant.

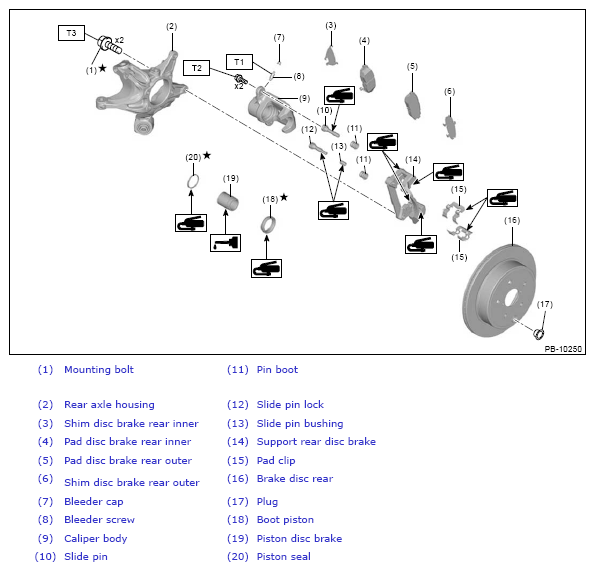

Fig 1: Rear Disc Brake Components With Torque Specifications (Except For Electronic Parking Brake Model)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 8 (0.8, 5.9)

T2: 27 (2.8, 19.9)

T3: 73 (7.4, 53.8)

Courtesy of SUBARU OF AMERICA, INC.
