Electronic Parking Brake Model

WARNING: This page is about a different car, the 2022 Subaru WRX. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:

Do not remove the parking brake actuator except for the system error.

  • The piston disc brake cannot be removed from the caliper body.
  • Remove mud and foreign matter from the caliper body.

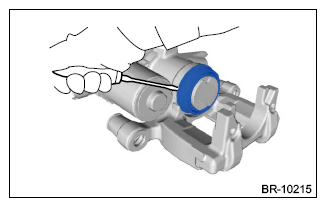

  1. Remove the boot piston.
    G13225403Courtesy of SUBARU OF AMERICA, INC.
  2. Remove the pin boot from caliper body.
    G13199760Courtesy of SUBARU OF AMERICA, INC.
