Water Tank Pipe Assembly

WARNING: This page is about a different car, the 2022 Subaru WRX. However, it is still accessible from the selected car via links, so may be relevant.

Install the thermostat. (CVT model) Ref. to COOLING (H4DOTC)>THERMOSTAT>INSTALLATION>WATER TANK PIPE SIDE .

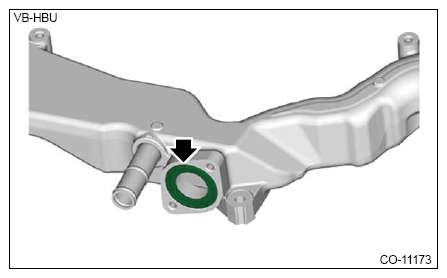

Install a new gasket. (MT model)

Courtesy of SUBARU OF AMERICA, INC.

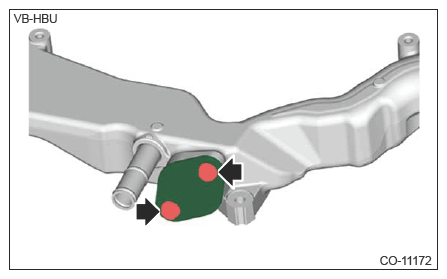

Install the cover. (MT model)
Tightening torque:

6.4 N.m (0.7 kgf-m, 4.7 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.

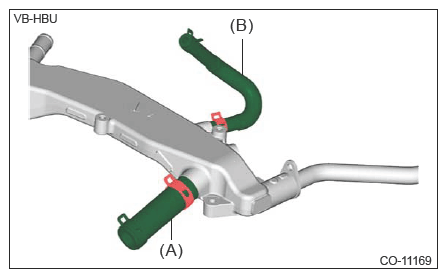

Install the water hose (A) and preheater hose (B).

Courtesy of SUBARU OF AMERICA, INC.
Install the engine coolant temperature sensor. Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DOTC)>ENGINE COOLANT TEMPERATURE SENSOR>INSTALLATION .
