Combination Switch (Wiper): Removal

WARNING: This page is about a different car, the 2022 Subaru WRX. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:

Before handling the airbag system components, refer to "CAUTION" of "General Description" in "AIRBAG SYSTEM". Ref. to  AIRBAG SYSTEM>GENERAL DESCRIPTION>CAUTION

  1. Disconnect the ground terminal from the battery sensor, and wait for at least 60 seconds before starting work. Ref. to REPAIR CONTENTS>NOTE>BATTERY
  2. Turn the steering wheel assembly to right and left, remove the screws, and remove the column cover assembly. Ref. to POWER ASSISTED SYSTEM (POWER STEERING)>STEERING COLUMN>REMOVAL
  3. Remove the switch assembly combination wiper.
    1. Disconnect connectors.

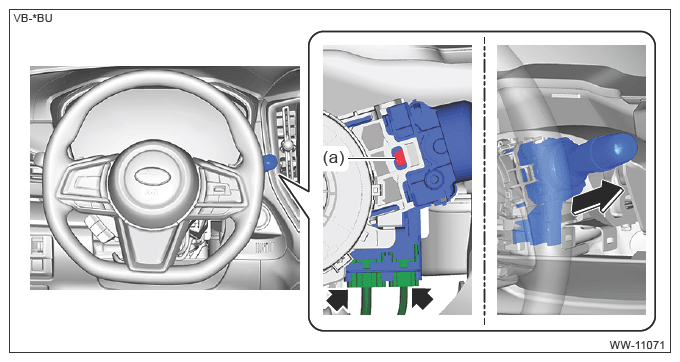

    2. Press the claw (a), and remove the switch assembly combination wiper.
      CAUTION:

      Do not press the claws with excessive force. They may be damaged.

      G14612425Courtesy of SUBARU OF AMERICA, INC.
