Model With Wiper Arm Washer

WARNING: This page is about a different car, the 2022 Subaru WRX. However, it is still accessible from the selected car via links, so may be relevant.

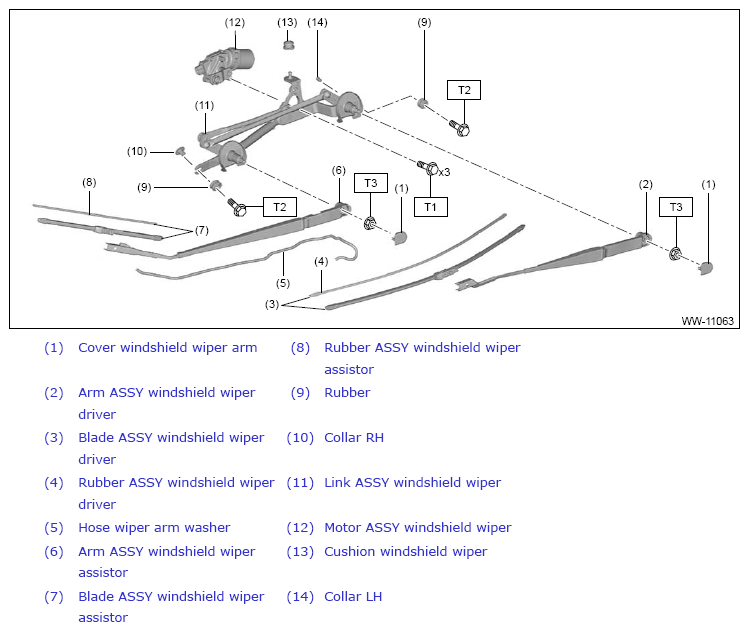

Fig 1: Front Wiper Components (With Torque Specification) (Model With Wiper Arm Washer)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 5.4 (0.6, 4.0)

T2: 6 (0.6, 4.4)

T3: 22 (2.2, 16.2)
