Wiper Blade: Disassembly
WARNING: This page is about a different car, the 2022 Subaru WRX. However, it is still accessible from the selected car via links, so may be relevant.

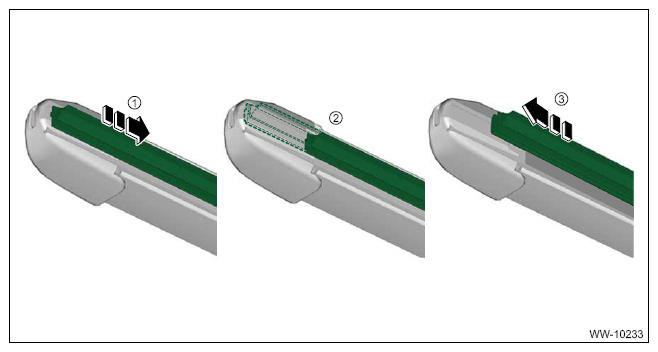

- Hold the rubber assembly windshield wiper, and pull it in the arrow (1) direction to the slit position (2) of the blade assembly windshield.
- Pull out the rubber assembly windshield wiper from the slit of the blade assembly windshield as shown in (3).
 Courtesy of SUBARU OF AMERICA, INC.
|
NOTE:
Shorten the entire rubber assembly windshield wiper in the arrow direction at three or four places.
 Courtesy of SUBARU OF AMERICA, INC.
|
