Cam Carrier

WARNING: This page is about a different car, the 2022 Subaru WRX. However, it is still accessible from the selected car via links, so may be relevant.

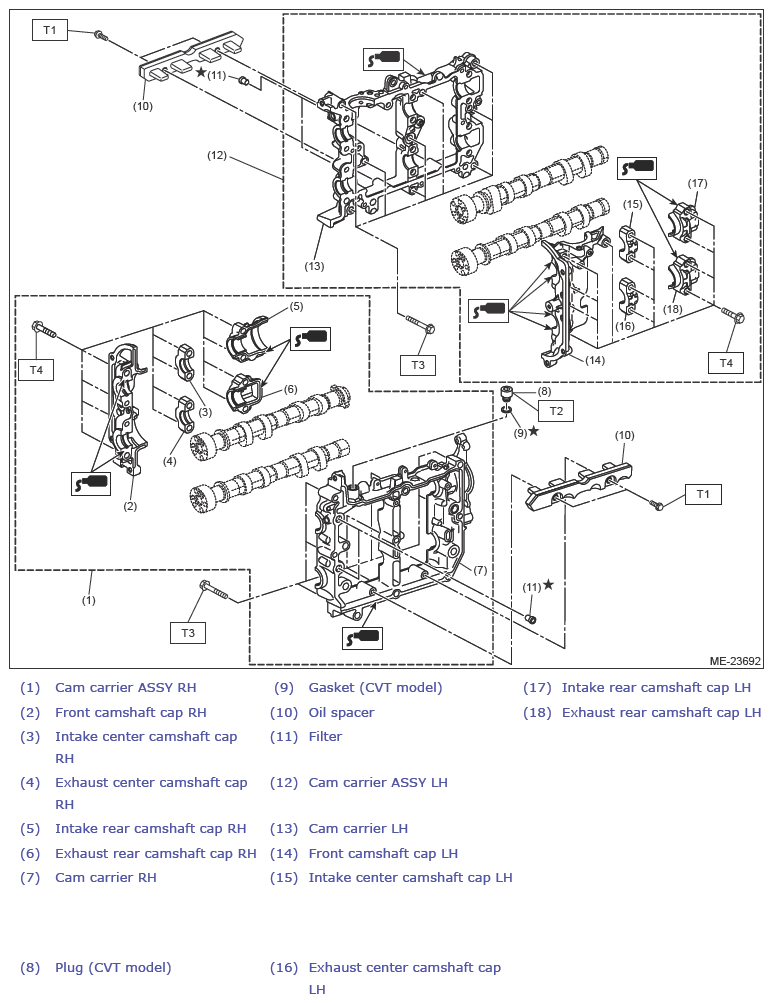

Fig 1: CAM Carrier Components (With Torque Specifications)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 6.4 (0.7, 4.7)

T2: 20 (2.0, 14.8)

T3: Ref. to MECHANICAL (H4DOTC)>CAM CARRIER>INSTALLATION .

T4: Ref. to MECHANICAL (H4DOTC)>CAM CARRIER>ASSEMBLY .
