Section 30 (Engine Intake System (Induction)): Intercooler: Assembly

WARNING: This page is about a different car, the 2022 Subaru WRX. However, it is still accessible from the selected car via links, so may be relevant.

Temporarily install the intake duct No. 3 using a new gasket.
Tighten the bolts in the numerical order as shown in the figure.
Tightening torque:

16 N.m (1.6 kgf-m, 11.8 ft-lb)

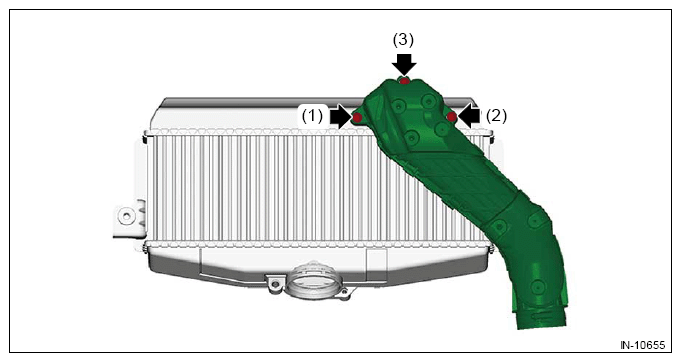

Fig 1: Intake Duct No. 3 Bolts Tightening Sequence
Courtesy of SUBARU OF AMERICA, INC.
