Electronic Parking Brake Model
WARNING: This page is about a different car, the 2022 Subaru WRX. However, it is still accessible from the selected car via links, so may be relevant.

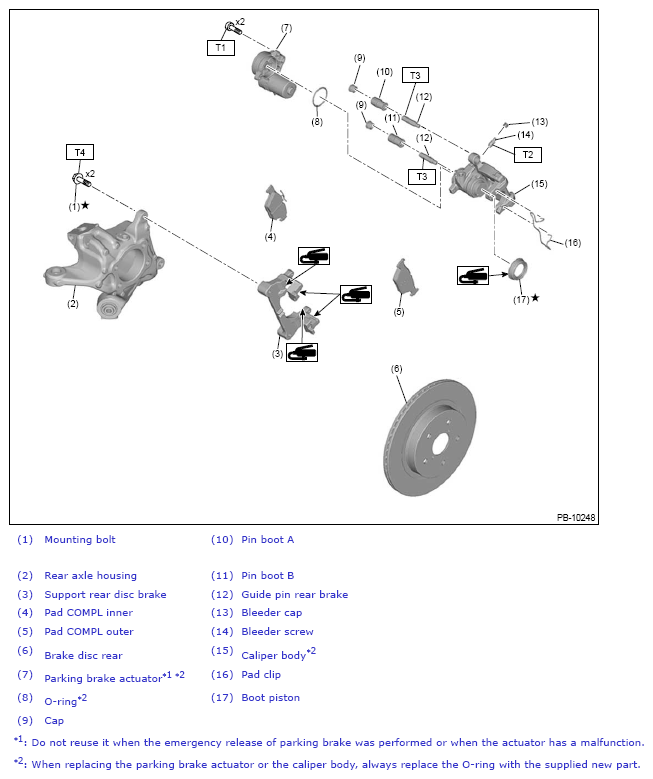

Fig 1: Parking Brake Components (With Torque Specifications) - Electronic Parking Brake Model (1 Of 2)
Tightening torque: N.m (kgf-m, ft-lb)
T1: 8 (0.8, 5.9)
T2: 17 (1.7, 12.5)
T3: 25 (2.5, 18.4)
T4: 73 (7.4, 53.8)

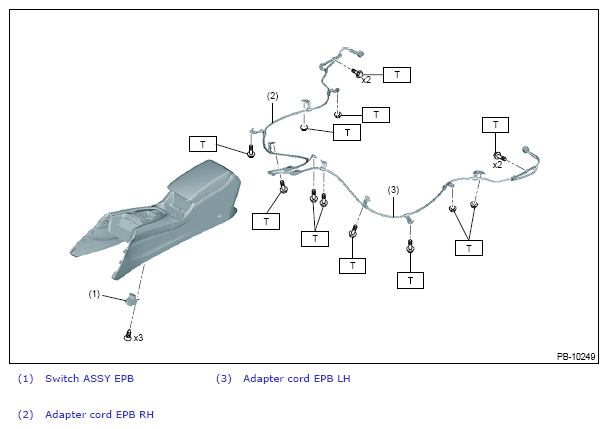

Fig 2: Parking Brake Components (With Torque Specifications) - Electronic Parking Brake Model (2 Of 2)
Tightening torque: N.m (kgf-m, ft-lb)
T: 18 (1.8, 13.3)
