Hood Lock Assembly

WARNING: This page is about a different car, the 2022 Subaru WRX. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY
  2. Remove the air intake duct. Ref. to INTAKE (INDUCTION) (H4DOTC)>AIR INTAKE DUCT>REMOVAL
  3. Remove the clips, and remove the cover UPR front.
    G14612105Courtesy of SUBARU OF AMERICA, INC.
  4. Remove the bumper face front. Ref. to EXTERIOR/INTERIOR TRIM>FRONT BUMPER>REMOVAL
  5. Remove the lock assembly front hood.

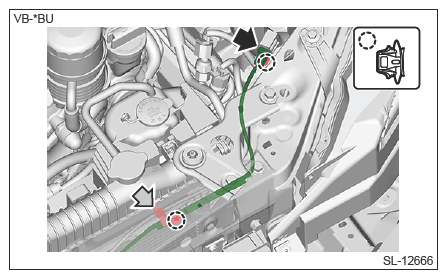

    1. Disconnect the connector.
    2. Remove the connector clip and harness clip.
      G14612802Courtesy of SUBARU OF AMERICA, INC.

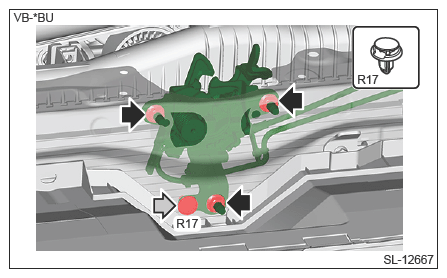

    3. Remove the nuts and clips, and remove the lock assembly front hood.
      G14612803Courtesy of SUBARU OF AMERICA, INC.

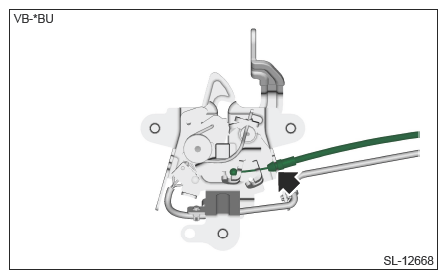

    4. Remove the cable assembly front hood from the guide.
      G14612804Courtesy of SUBARU OF AMERICA, INC.
