Front Lateral Link: Removal

  1. Lift up the vehicle, and then remove the rear wheels.
  2. Remove the trailing link. Refer to REAR SUSPENSION>REAR TRAILING LINK>REMOVAL .

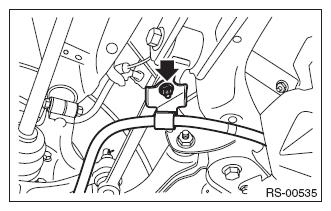

  3. Remove the nuts, and remove the cable assembly - parking brake or the electronic parking brake harness.
    G10269484Courtesy of SUBARU OF AMERICA, INC.

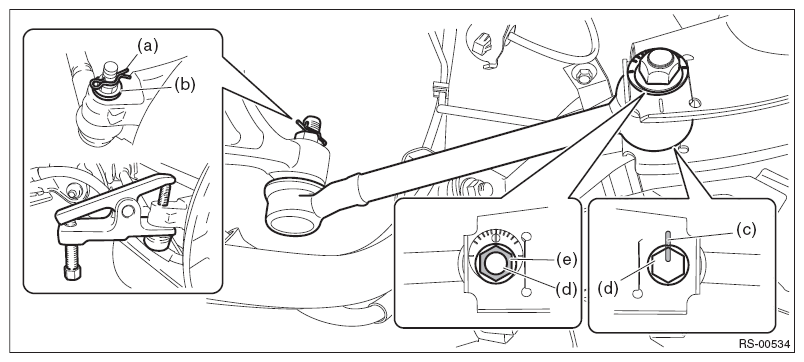

  4. Remove the lateral link assembly - front.
    1. Remove the snap pin (a) and nut (b).
    2. Disconnect the rear axle housing and the ball joint.

      Preparation tool:

      Tie-rod ball joint puller

    3. Scribe alignment marks (c) on the adjusting bolt for lateral link assembly - front and on the rear sub frame assembly.
    4. Remove the adjusting bolt (d), and remove the lateral link assembly - front.
    CAUTION: When removing the adjusting bolt (d), make sure to fix the bolt head in place when loosening the nut (e).
G10269485Courtesy of SUBARU OF AMERICA, INC.
