Rear Suspension

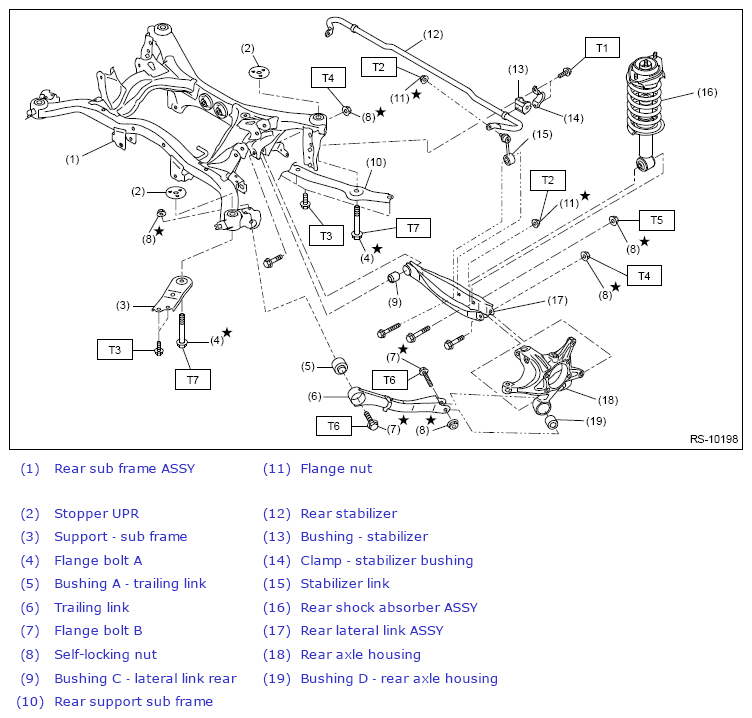

Fig 1: Rear Suspension Components (With Torque Specification) (1 Of 2)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 30 (3.1, 22.1)

T2: 38 (3.9, 28)

T3: 70 (7.1, 51.6)

T4: 80 (8.2, 59)

T5: 85 (8.7, 62.7)

T6: 110 (11.2, 81.1)

T7: 145 (14.8, 106.9)

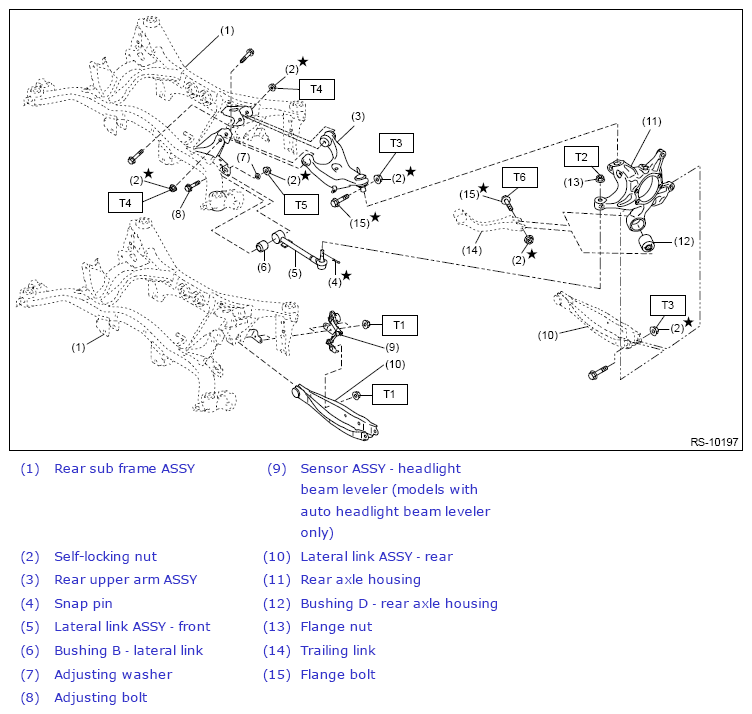

Fig 2: Rear Suspension Components (With Torque Specification) (2 Of 2)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 7.5 (0.8, 5.5)

T2: 60 (6.1, 44.3)

T3: 80 (8.2, 59)

T4: 90 (9.2, 66.4)

T5: 100 (10.2, 73.8)

T6: 110 (11.2, 81.1)
