Upper Arm: Removal
- Disconnect the ground cable from battery. Refer to NOTE>NOTE>BATTERY
.NOTE: For model with battery sensor, disconnect the ground terminal from battery sensor.
- Lift up the vehicle, and then remove the rear wheels.
- Remove the rear sub frame assembly. Refer to REAR SUSPENSION>REAR SUB FRAME>REMOVAL .

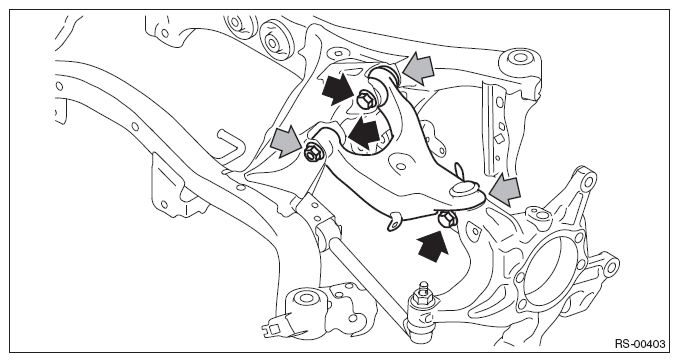

- Remove the bolts and nuts to remove the upper arm assembly.
