Clutch Pipe And Hose

• STI model

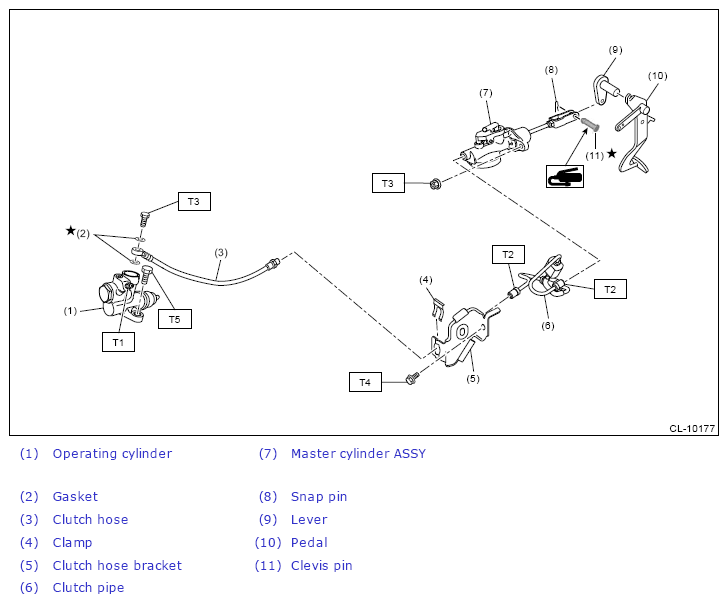

  Fig 1: Clutch Pipe And Hose Components (With Torque Specification) (STI Model)

  Courtesy of SUBARU OF AMERICA, INC.

  Tightening torque: N.m (kgf-m, ft-lb)

  T1: 7.8 (0.8, 5.8)

  T2: 15 (1.5, 11.1)

  T3: 18 (1.8, 13.3)

  T4: 25 (2.5, 18.4)

  T5: 41 (4.2, 30.2)

• Except for STI model

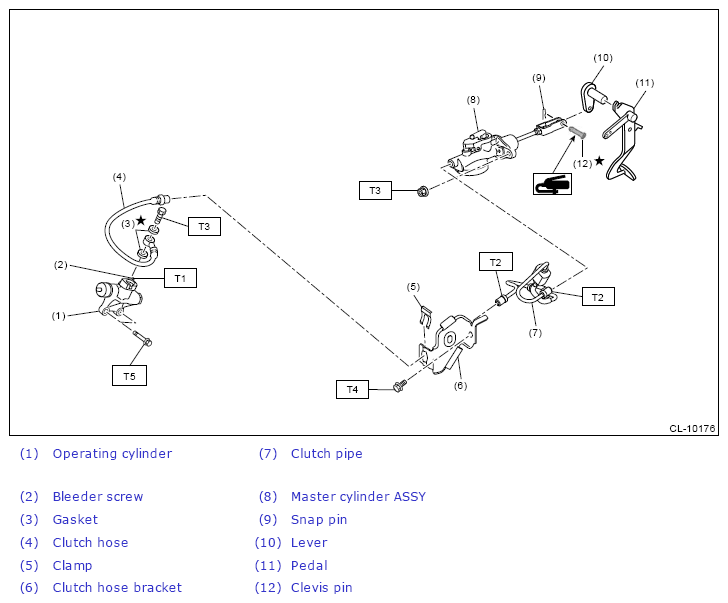

  Fig 2: Clutch Pipe And Hose Components (With Torque Specification) (Except For STI Model)

  Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 7.8 (0.8, 5.8)

T2: 15 (1.5, 11.1)

T3: 18 (1.8, 13.3)

T4: 25 (2.5, 18.4)

T5: 37 (3.8, 27.3)
