Shift Link Assembly: Installation

Clean the mating surface of the transmission cover and transfer case.
Install the shift accent plunger and the check ball spring.
NOTE: Use new seal rings.

Tightening torque:

25 N.m (2.5 kgf-m, 18.4 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.
Using the ST, install the needle bearing.
NOTE:
- Use a new needle bearing.
- If the press-fit depth exceeds the service limit, replace with a new needle bearing.
ST1 18763AA000 COMPRESSOR SHAFT

ST2 498277200 STOPPER SET

Press-fit depth of needle bearing:

A: 8.5±0.2 mm (0.33±0.01 in) from the end of transfer case

Courtesy of SUBARU OF AMERICA, INC.

B: 0.2±0.2 mm (0.01±0.01 in) from the end of transfer case

Courtesy of SUBARU OF AMERICA, INC.
Set ST1, ST2 and transfer case to a press.
NOTE:
- Set the ST2 under ST1.
- Set the transfer case so that the hole for shifter arm is positioned vertically.
ST1 498267300 CYLINDER HEAD TABLE

ST2 498267200 CYLINDER HEAD TABLE

Courtesy of SUBARU OF AMERICA, INC.
Using the ST, install the roller bearing.
NOTE:
- Use a new roller bearing.
- Gradually perform the press-fit operation while measuring the press-fit depth.
- If the press-fit depth exceeds the service limit, replace with a new bearing.
ST 899864100 REMOVER

Press-fit depth of roller bearing:

A: 5.1±0.2 mm (0.20±0.01 in) from the finished surface of transfer case

Courtesy of SUBARU OF AMERICA, INC.
Flip over the transfer case, and set an iron plate between transfer case and ST.
NOTE:
- Insert the iron plate which is thicker than the exposed length of the transfer case knock pin between the ST and transfer case.
- Set the parts while taking care that the transfer case knock pin and the roller bearing do not ride over the iron plate.
Using the ST, install the roller bearing.
NOTE:
- Use a new roller bearing.
- Gradually perform the press-fit operation while measuring the press-fit depth.
- If the press-fit depth exceeds the service limit, replace with a new bearing.
ST 899864100 REMOVER

Press-fit depth of roller bearing:

A: 0±0.2 mm (0±0.01 in) from the end of transfer case

Courtesy of SUBARU OF AMERICA, INC.
Using the ST, install the oil seal.
NOTE:
- Use a new oil seal.
- The illustration shows the oil seal of selector lever COMPL. Perform the same procedures for installing the oil seal of shifter arm No. 2.
- Apply transmission gear oil to the oil seal lips.
ST 18657AA000 INSTALLER

Press-fit depth of oil seal:

1±0.2 mm (0.04±0.01 in) from the end of transfer case

Courtesy of SUBARU OF AMERICA, INC.

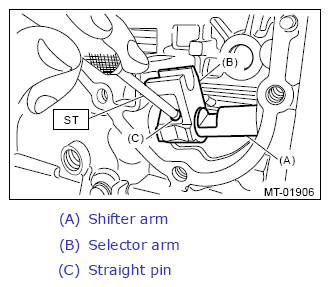

Insert the shifter arm and fix with a straight pin.
NOTE: Use a new straight pin.

ST 398791700 REMOVER

Courtesy of SUBARU OF AMERICA, INC.

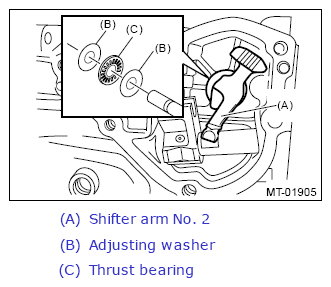

Install the shifter arm No. 2, adjusting washers and thrust bearing.
CAUTION: Be careful not to damage the oil seal.

Courtesy of SUBARU OF AMERICA, INC.

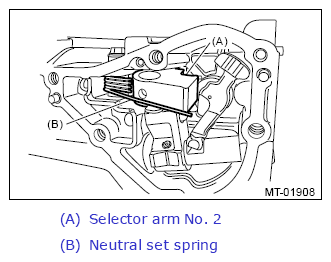

Install the shifter arm collar and neutral set spring.
NOTE: Use a new gasket.

Tightening torque:

6.4 N.m (0.7 kgf-m, 4.7 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.
Install the selector arm No. 2.

Courtesy of SUBARU OF AMERICA, INC.

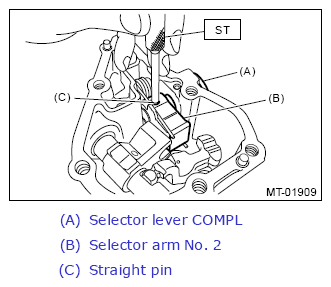

Insert the selector lever COMPL and fix with a straight pin.
CAUTION: Be careful not to damage the oil seal.

NOTE: Use a new straight pin.

ST 398791700 REMOVER

Courtesy of SUBARU OF AMERICA, INC.

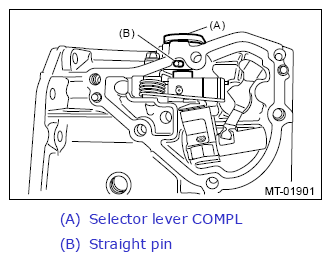

Insert a new straight pin.

Courtesy of SUBARU OF AMERICA, INC.
Install the center differential and transfer driven gear as a unit.
Install the transfer case and the extension case assembly. Refer to MANUAL TRANSMISSION AND DIFFERENTIAL(6MT) (TY75)>TRANSFER CASE AND EXTENSION CASE ASSEMBLY>INSTALLATION .
Apply liquid gasket seamlessly.
Liquid gasket:

THREE BOND 1215B or equivalent

Courtesy of SUBARU OF AMERICA, INC.

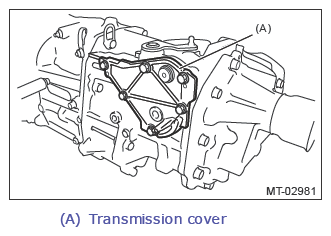

Install the transmission cover.
Tightening torque:

25 N.m (2.5 kgf-m, 18.4 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.
Install the back-up light switch and the neutral position switch. Refer to MANUAL TRANSMISSION AND DIFFERENTIAL(6MT) (TY75)>SWITCHES AND HARNESS>INSTALLATION .
Install the manual transmission assembly to the vehicle. Refer to MANUAL TRANSMISSION AND DIFFERENTIAL(6MT) (TY75)>MANUAL TRANSMISSION ASSEMBLY>INSTALLATION .
