Fuel Tank Protector: Installation

Install in the reverse order of removal.

Tightening torque:

T1: 9 N.m (0.9 kgf-m, 6.6 ft-lb)

T2: 18 N.m (1.8 kgf-m, 13.3 ft-lb)

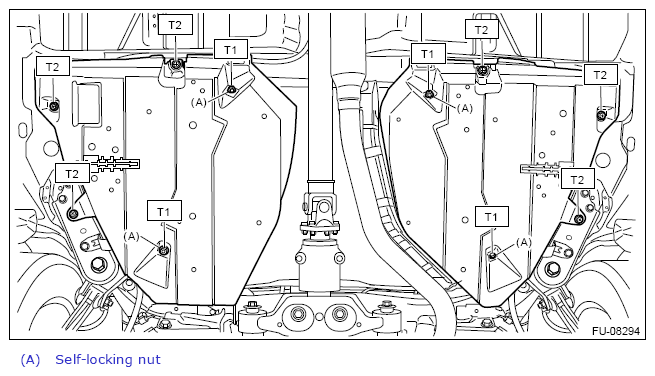

Fig 1: Fuel Tank Protector, Self-Locking Nuts And Bolts (With Torque Specification)

Courtesy of SUBARU OF AMERICA, INC.
