Transmission Case

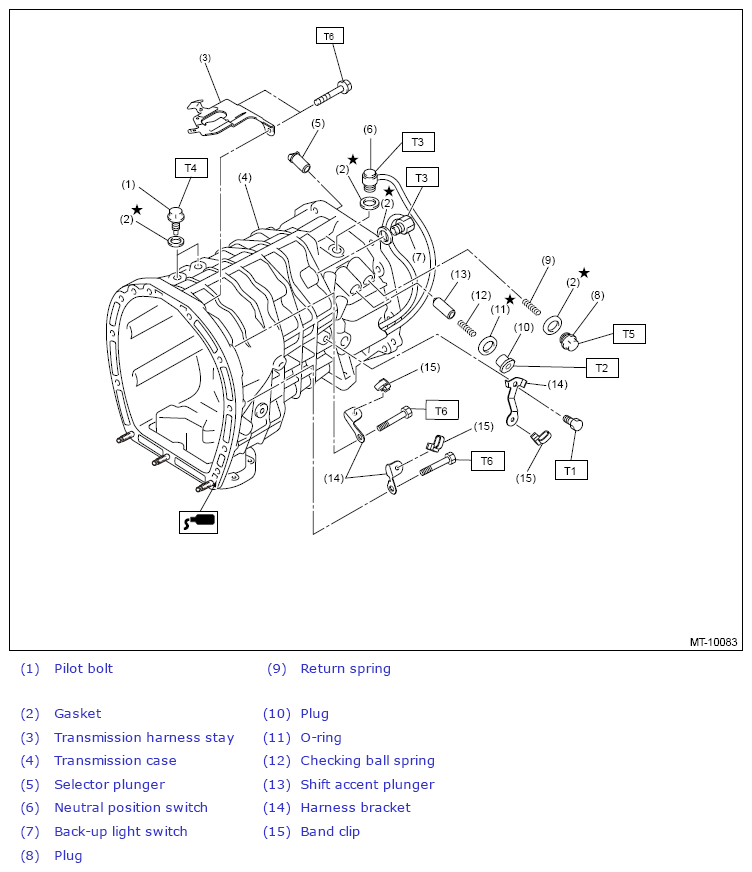

Fig 1: Transmission Case Components (With Torque Specification)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 16 (1.6, 11.8)

T2: 25 (2.5, 18.4)

T3: 32 (3.3, 23.6)

T4: 34 (3.5, 25.1)

T5: 41 (4.2, 30.2)

T6: 50 (5.1, 36.9)
