Main Shaft Assembly: Disassembly
NOTE:
Individual coupling sleeves and synchronizer hubs meet at a specified position. Before disassembly, mark the meeting position of the coupling sleeve and synchronizer hub.
- Affix the ST to the work table.
ST 18664AA000 BASE
- Flatten the tab of the lock nut.
- Set the main shaft assembly to the ST, and remove the lock nut and lock washer.
ST1 18665AA000 HOLDER
ST2 18664AA000 BASE
NOTE: Use a 38 mm socket wrench. - Remove the main shaft assembly from the ST.

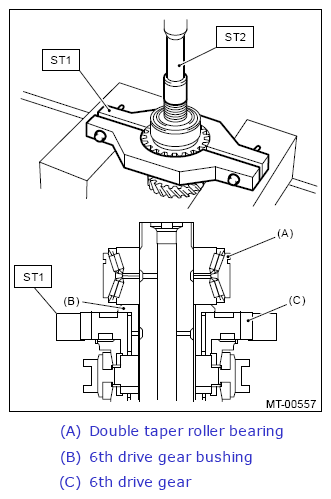

- Set the ST1 to the 6th drive gear, and use a press to remove the double taper roller bearing and outer race, 6th drive gear bushing and 6th drive gear.
ST1 18722AA010 REMOVER
ST2 899864100 REMOVER
- Remove the 5th-6th coupling sleeve, 6th needle bearing and 6th baulk ring.

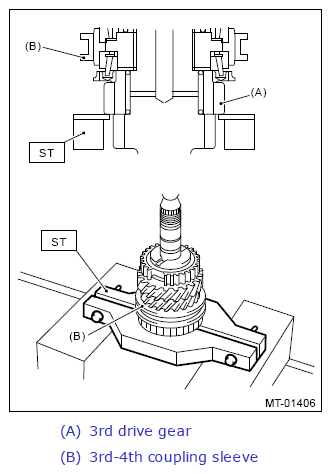

- Set the ST to the 3rd drive gear, and use a press to remove individual parts.
ST 18720AA000 REMOVER
