Reverse Check System: Removal

Remove the manual transmission assembly from the vehicle. Refer to MANUAL TRANSMISSION AND DIFFERENTIAL(6MT) (TY85)>MANUAL TRANSMISSION ASSEMBLY>REMOVAL .
Prepare the transmission for overhaul. Refer to MANUAL TRANSMISSION AND DIFFERENTIAL(6MT) (TY85)>PREPARATION FOR OVERHAUL .
Remove the extension case. Refer to MANUAL TRANSMISSION AND DIFFERENTIAL(6MT) (TY85)>EXTENSION CASE>REMOVAL .

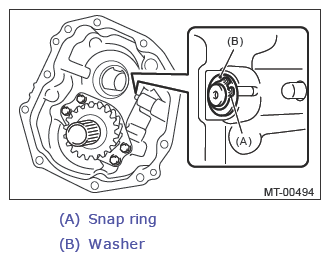

Remove the snap ring and washer.

Courtesy of SUBARU OF AMERICA, INC.
Remove the reverse check shaft and return spring.

Courtesy of SUBARU OF AMERICA, INC.
Remove the straight pin, and remove the reverse check lever and oil seal.

Courtesy of SUBARU OF AMERICA, INC.
Remove the plug, then remove the gasket, reverse check spring and reverse check plunger.

Courtesy of SUBARU OF AMERICA, INC.
Remove the reverse lock plunger.

Courtesy of SUBARU OF AMERICA, INC.
