Front Brake Pipe
WARNING: This page is about a different car, the 2021 Subaru Ascent. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
- Lift up the vehicle, and then remove the front wheels.
- Remove the vacuum booster assembly. Ref. to BRAKE>Brake Booster>REMOVAL>BRAKE BOOSTER .

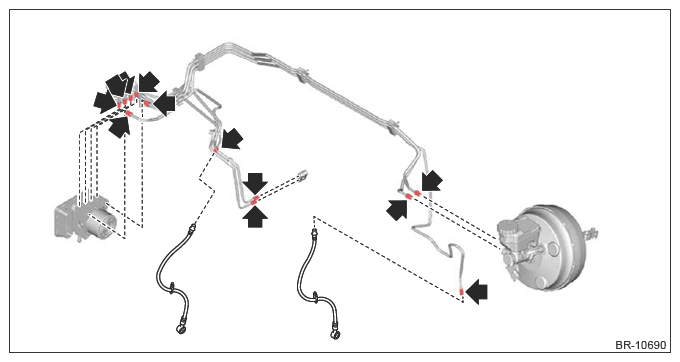

- Remove the pipe assembly front ABS.
- Separate pipe assembly front ABS using a flare nut wrench.
Preparation tool:
Flare nut wrench

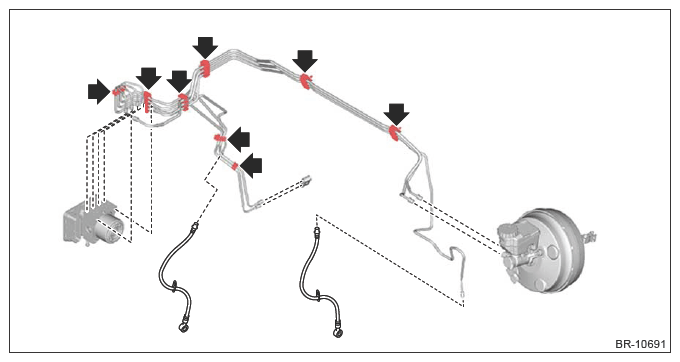

- Remove the pipe assembly front ABS from the clamp and clip.
- Separate pipe assembly front ABS using a flare nut wrench.
