Passenger's Airbag Module

WARNING: This page is about a different car, the 2021 Subaru Ascent. However, it is still accessible from the selected car via links, so may be relevant.
  1. Turn the ignition switch to OFF.
  2. Disconnect the ground terminal from the battery sensor, and wait for at least 60 seconds before starting work. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
  3. Remove the glove box assembly. Ref. to EXTERIOR/INTERIOR TRIM>Glove Box>REMOVAL .

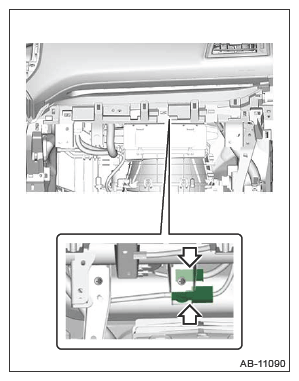

  4. Disconnect the passenger's airbag module connector.
    G13200706Courtesy of SUBARU OF AMERICA, INC.
  5. Prepare two pieces of AIRBAG DEPLOYMENT TOOL, and short the terminal to the furnished alligator clip.
    CAUTION: The AIRBAG DEPLOYMENT TOOL should be kept shorted on the terminals until just before activation of airbag module.

    Preparation tool:

    ST: AIRBAG DEPLOYMENT TOOL (98299PA030) x 2

  6. Connect the AIRBAG DEPLOYMENT TOOL (A) and TEST HARNESS ADAPTER AM (B).

    Preparation tool:

    ST: TEST HARNESS ADAPTER AM (98299FJ000)

    G13200707Courtesy of SUBARU OF AMERICA, INC.
  7. Connect AIRBAG DEPLOYMENT TOOL (C) and test harness adapter AR (D), and mark AIRBAG DEPLOYMENT TOOL with vinyl tape.

    Preparation tool:

    ST: TEST HARNESS ADAPTER AR (98299CA000)

    G13200708Courtesy of SUBARU OF AMERICA, INC.

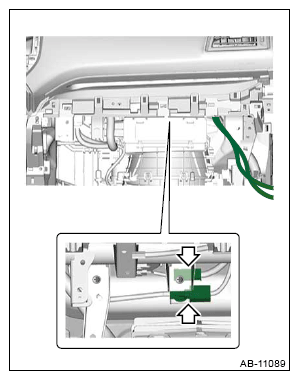

  8. Connect TEST HARNESS ADAPTER AM and the test harness adapter AR to the airbag connector.
    G13200709Courtesy of SUBARU OF AMERICA, INC.
  9. Make sure there is no one inside the vehicle.
  10. Extend the two pieces of wiring of AIRBAG DEPLOYMENT TOOL to the limit, and close all the windows and sunroof completely.
    G13200710Courtesy of SUBARU OF AMERICA, INC.
  11. Move the battery at least 5 m (16 ft) from the vehicle, and confirm safety in the area.
  12. Connect the alligator clip of AIRBAG DEPLOYMENT TOOL (with marking tape) on the passenger's airbag module (variable vent hole) side to the battery ground (-) terminal.
  13. Connect the other cable of AIRBAG DEPLOYMENT TOOL (with marking tape) on the passenger's airbag module (variable vent hole) side to the battery positive (+) terminal, and activate the variable vent hole of the airbag module.
    G10270500Courtesy of SUBARU OF AMERICA, INC.
  14. Connect the alligator clip of AIRBAG DEPLOYMENT TOOL (without marking tape) on the passenger's airbag module side to the battery ground (-) terminal.
  15. Connect the other cable of AIRBAG DEPLOYMENT TOOL (without marking tape) on the passenger's airbag module side to the battery positive (+) terminal, and activate the airbag module.
    CAUTION:
    • After activation, the airbag module will be extremely hot. Let it cool down for at least 40 minutes in an area with no one around.
    • Do not expose the activated airbag module to water.
    G10270500Courtesy of SUBARU OF AMERICA, INC.
  16. Confirm that the variable vent hole (a) of the passenger's airbag module is open, and remove the passenger's airbag module. Ref. to AIRBAG SYSTEM>Passenger's Airbag Module>REMOVAL .
    G13200713Courtesy of SUBARU OF AMERICA, INC.
  17. Check that the tether (a) installed on the variable vent hole actuator of the passenger's airbag module is cut.
    G13200714Courtesy of SUBARU OF AMERICA, INC.
  18. Place the activated airbag module in a sealed vinyl bag, then discard.
G10270513Courtesy of SUBARU OF AMERICA, INC.
