Deflector Assembly
WARNING: This page is about a different car, the 2021 Subaru Ascent. However, it is still accessible from the selected car via links, so may be relevant.
- Open the lid assembly front and the shade assembly.
- Remove the deflector.

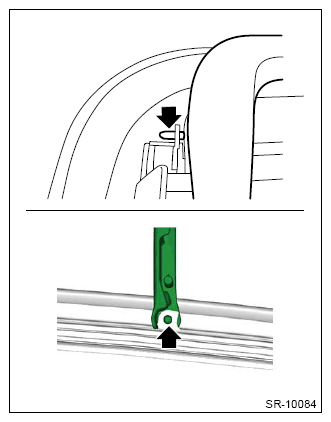

- Turn over the weather strip frame assembly, and remove the deflector (a) from the frame assembly front.
 Courtesy of SUBARU OF AMERICA, INC.
|
- Remove the deflector from the frame assembly front and the rail assembly & cable assembly.
 Courtesy of SUBARU OF AMERICA, INC.
|
