Parking Pawl: Removal

  1. Remove the transmission body. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>Transmission Assembly>REMOVAL .
  2. Shift the shifter arm to "N" range.
  3. Remove the extension case. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>Extension Case>REMOVAL .

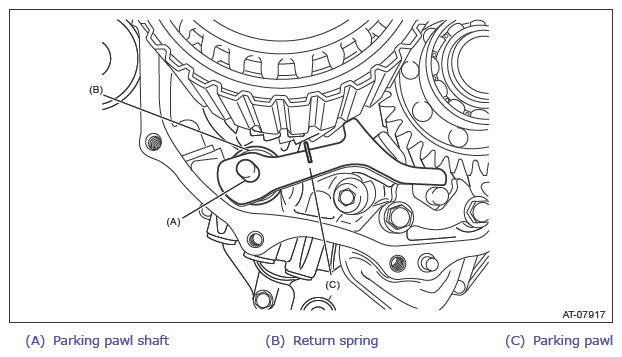

  4. Remove the parking pawl shaft, return spring and parking pawl.
    G13863971Courtesy of SUBARU OF AMERICA, INC.
