Front ABS Wheel Speed Sensor: Removal

1. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
2. Remove the front wheels. Ref. to WHEEL AND TIRE SYSTEM>TIRE AND WHEEL>REMOVAL .
3. Remove the mud guard front. Ref. to EXTERIOR/INTERIOR TRIM>MUD GUARD>REMOVAL .
4. Remove the sensor sub assembly front.
   CAUTION:

   • Be careful not to damage the sensor.
   • Do not apply excessive force to the sensor harness.
   1. Disconnect the sensor sub assembly front connector.

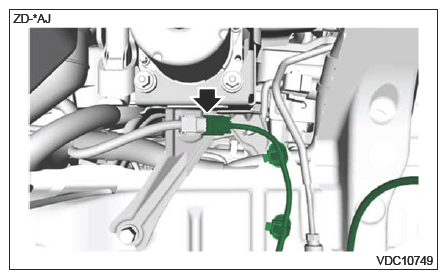

      • LH side

        Courtesy of SUBARU OF AMERICA, INC.

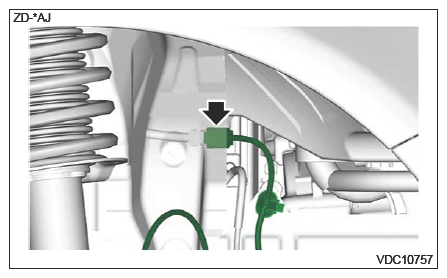

      • RH side

      Courtesy of SUBARU OF AMERICA, INC.

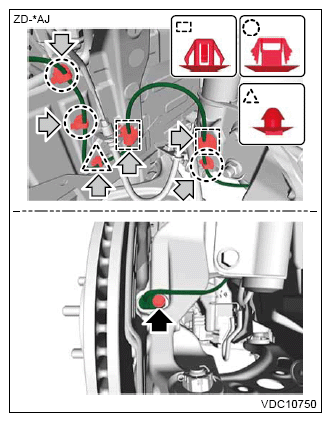

   2. Remove the bolt and harness clip, and remove the sensor sub assembly front.

Courtesy of SUBARU OF AMERICA, INC.
