Mt Model

  1. Disconnect the cable from the M terminal.
    G16524640Courtesy of SUBARU OF AMERICA, INC.
  2. Remove the magnet switch assembly.
    G16524641Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the bolt (A) and through bolts (B), and remove the starter cover.
    G16524642Courtesy of SUBARU OF AMERICA, INC.

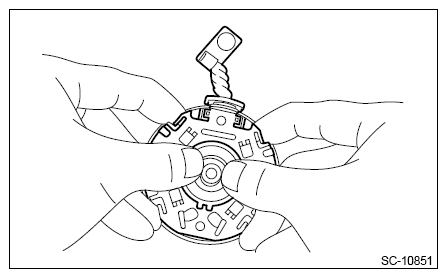

  4. Remove the brush holder assembly.
    NOTE: Hold the brush with your fingers so that the brush spring does not come flying out.
    G16524643Courtesy of SUBARU OF AMERICA, INC.
  5. Remove the armature assembly and yoke assembly together as a single unit.
    G16524644Courtesy of SUBARU OF AMERICA, INC.
  6. Separate the armature assembly and yoke assembly.
    G16524645Courtesy of SUBARU OF AMERICA, INC.
  7. Remove the pinion gear from the internal gear.
    G16524646Courtesy of SUBARU OF AMERICA, INC.
  8. Remove seal rubber (A), plate (B), and seal rubber (C).
    G16524647Courtesy of SUBARU OF AMERICA, INC.

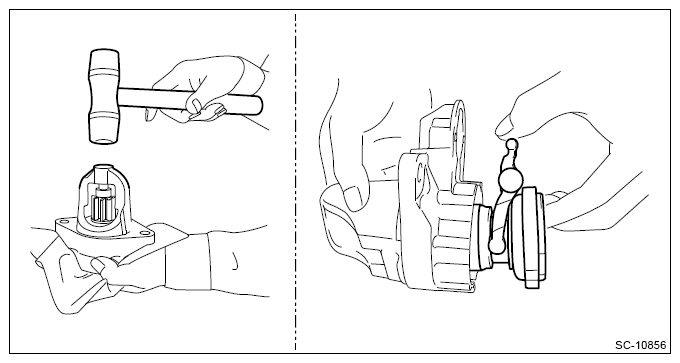

  9. Lightly tap the starter housing with a plastic hammer as shown in the figure, and remove the overrunning clutch, internal gear, shaft and shift lever together as one unit.
    G16524648Courtesy of SUBARU OF AMERICA, INC.
  10. Use the following procedures to remove the overrunning clutch.
    1. Set an appropriate tool (suitable attachment, etc.), and remove the stopper from snap ring by lightly tapping the stopper with a plastic hammer.
      G16524649Courtesy of SUBARU OF AMERICA, INC.
      (A) Appropriate tool
      (B) Snap ring
      (C) Shaft
      (D) STOPPER
    2. Remove the snap ring (A), and remove the stopper (B).
      G16524650Courtesy of SUBARU OF AMERICA, INC.
    3. Remove the overrunning clutch.
    G16524651Courtesy of SUBARU OF AMERICA, INC.
  11. Remove the internal gear.
G16524652Courtesy of SUBARU OF AMERICA, INC.
