Front Seat Belt

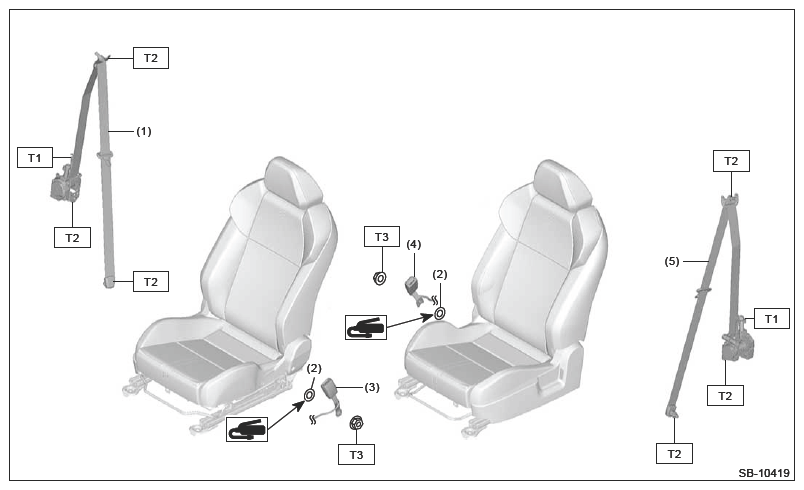

Fig 1: Front Seat Belt Components Location

G16526759

Courtesy of SUBARU OF AMERICA, INC.

(1)

Belt ASSY front OUT RH

(2)

Spring wave washer

(3)

Belt ASSY front INN RH ⁽¹⁾

(4)

Belt ASSY front INN LH ⁽¹⁾

(5)

Belt ASSY front OUT LH

⁽¹⁾	Apply grease when replacing the belt assembly front INN. Ref. to SEAT BELT SYSTEM>FRONT SEAT BELT>INSTALLATION>BELT ASSEMBLY FRONT INN .

Tightening torque: N.m (kgf-m, ft-lb)

T1: 7.5 (0.8, 5.5)

T2: 30 (3.1, 22.1)

T3: 38 (3.9, 28.0)
