Front Suspension

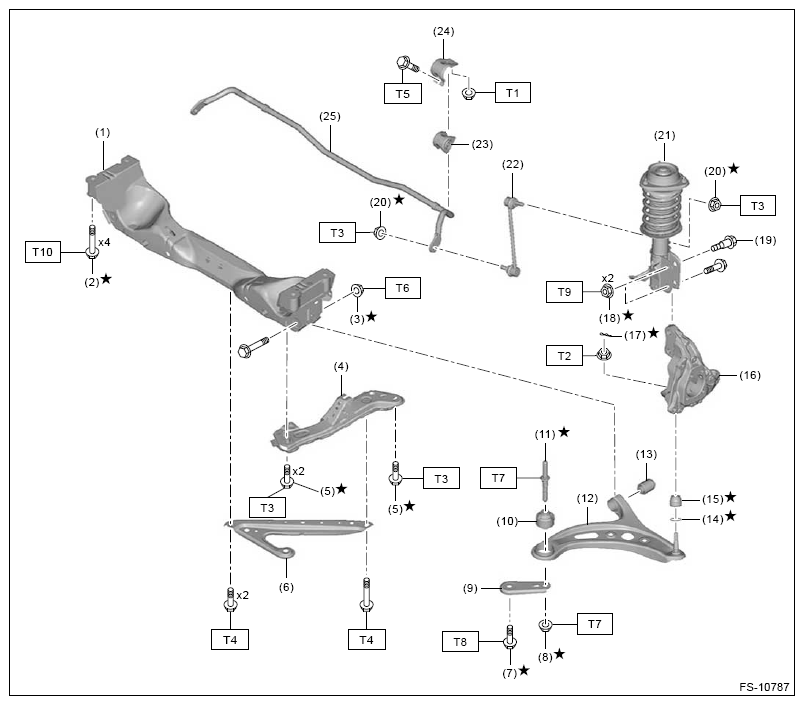

Fig 1: Front Suspension Components Location

G16524755

Courtesy of SUBARU OF AMERICA, INC.

(1)

Crossmember COMPL front

(2)

Flange bolt

(3)

Self-locking nut

(4)

Sub frame COMPL LH

(5)

Flange bolt

(6)

Sub frame front LWR C COMPL LH

(7)

Flange bolt

(8)

Self-locking nut

(9)

Plate arm front LH

(10)

Rubber bushing arm front

(11)

Stud bolt⁽¹⁾

(12)

Arm ASSY front LH

(13)

Rubber bushing arm rear

(14)

Clip

(15)

Dust cover

(16)

Front axle housing LH

(17)

Snap pin

(18)

Flange nut

(19)

Flange bolt⁽²⁾

(20)

Flange nut

(21)

Strut ASSY LH

(22)

Stabilizer link front LH

(23)

Rubber bushing stabilizer front

(24)

Clamp stabilizer

(25)

Stabilizer front

⁽¹⁾	Do not reuse the stud bolt when it has been removed from the vehicle.

⁽²⁾	When adjusting the camber angle, replace the flange bolt with a service part.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 25 (2.5, 18.4)

T2: 51 (5.2, 37.6)

T3: 60 (6.1, 44.3)

T4: 70 (7.1, 51.6)

T5: 75 (7.6, 55.3)

T6: 85 (8.7, 62.7)

T7: 110 (11.2, 81.1)

T8: 145 (14.8, 106.9)

T9: 155 (15.8, 114.3)

T10: Ref. to FRONT SUSPENSION>CROSSMEMBER> INSTALLATION .
