Torque Converter: Removal

Remove the transmission body. Ref. to AUTOMATIC TRANSMISSION>TRANSMISSION ASSEMBLY>REMOVAL .
Remove the ST.

Courtesy of SUBARU OF AMERICA, INC.

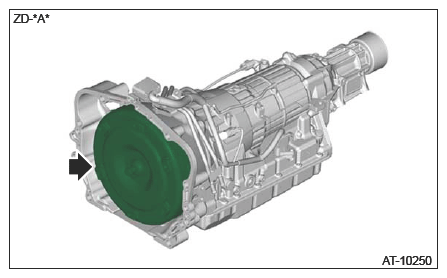

Pull out the torque converter horizontally.
CAUTION: Be careful not to scratch the inside of engaging parts.

NOTE: Prepare the container for draining of engine oil.

Courtesy of SUBARU OF AMERICA, INC.
