Turbine Speed Sensor: Removal

CAUTION: If water or oil contacts the connector terminal of turbine speed sensor, replace it with a new part.

Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
Remove the under cover front and the under cover COMPL front T/M. Ref. to EXTERIOR/INTERIOR TRIM>FRONT UNDER COVER>REMOVAL .

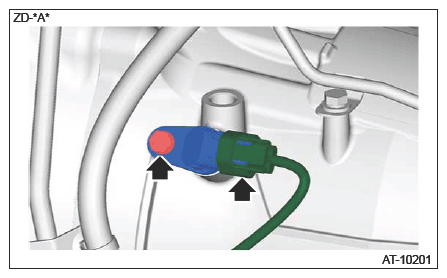

Disconnect the connector and remove the turbine speed sensor.

Courtesy of SUBARU OF AMERICA, INC.
Remove the O-ring from the turbine speed sensor.
