Extension Case: Disassembly

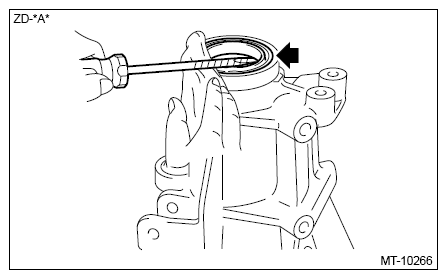

1. Remove the oil seal using a flat tip screwdriver wrapped with protection tape.
   CAUTION: When removing the oil seal, place a cloth onto the extension case to avoid damaging it.

   Courtesy of SUBARU OF AMERICA, INC.

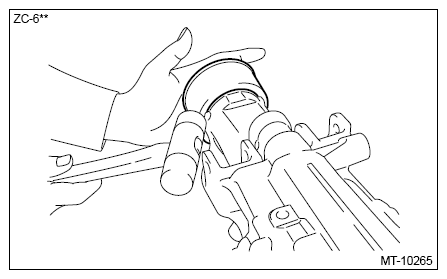

2. Remove the dust cover.

   Courtesy of SUBARU OF AMERICA, INC.

3. Remove the extension case oil seal using a flat tip screwdriver wrapped with protection tape, etc.
   CAUTION: When removing the oil seal, place a cloth onto the extension case to avoid damaging it.

   Courtesy of SUBARU OF AMERICA, INC.

4. Remove the oil guide No. 2.

   Courtesy of SUBARU OF AMERICA, INC.

5. Remove the oil guide No. 1 (A) and stopper plate (B).

   Courtesy of SUBARU OF AMERICA, INC.

6. Remove the straight pin.

Courtesy of SUBARU OF AMERICA, INC.
